Discussion topic: Micro filter / Openreach Box - Photo Attached

Reply
This message was authored by JRoome This message was authored by: JRoome

Micro filter / Openreach Box - Photo Attached

Hi all,

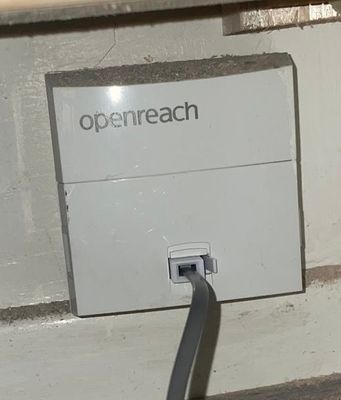

Getting ready for broadband activation Monday and a little confused with the box on the wall. No phone will be used, can I plug into the box on the wall (wire in there now is the grey wire given in the Sky hub box just received) and into the back of the hub and it'll work? Or do I need a micro filter? Thanks in advance.





Best Answers
This message was authored by Padam_Padam This message was authored by: Padam_Padam Answer

Re: Micro filter / Openreach Box - Photo Attached


@JRoome wrote:

Thanks so much for responding.

Not full fibre, just super fast. I will order a micro filter. Thank you again!

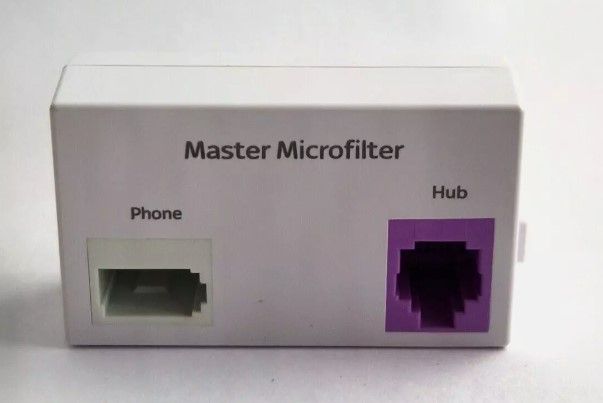

You'll need one that looks like this. It connects to the phone socket you have in your photo and then you connect the RJ11 cable from the purple socket to your Sky hub router. You don't need to put anything in the phone socket on the micro filter.




View this Answer within the discussion

Reply

All Replies

This message was authored by Padam_Padam This message was authored by: Padam_Padam

Re: Micro filter / Openreach Box - Photo Attached


@JRoome wrote:

Hi all,


Getting ready for broadband activation Monday and a little confused with the box on the wall. No phone will be used, can I plug into the box on the wall (wire in there now is the grey wire given in the Sky hub box just received) and into the back of the hub and it'll work? Or do I need a micro filter? Thanks in advance.





What type of broadband is being activated? Is it full fibre or just regular superfast?

If it's full fibre then you'll be getting a visit from an Openreach engineer to fit a new box on the wall. If it's superfast, which uses the old copper wiring you have there, then you will need a microfilter.

JRoome
Topic Author
This message was authored by JRoome This message was authored by: JRoome

Re: Micro filter / Openreach Box - Photo Attached

Thanks so much for responding.

Not full fibre, just super fast. I will order a micro filter. Thank you again!

This message was authored by Padam_Padam This message was authored by: Padam_Padam Answer

Re: Micro filter / Openreach Box - Photo Attached


@JRoome wrote:

Thanks so much for responding.

Not full fibre, just super fast. I will order a micro filter. Thank you again!


You'll need one that looks like this. It connects to the phone socket you have in your photo and then you connect the RJ11 cable from the purple socket to your Sky hub router. You don't need to put anything in the phone socket on the micro filter.




JRoome
Topic Author
This message was authored by JRoome This message was authored by: JRoome

Re: Micro filter / Openreach Box - Photo Attached

Excellent - thank you!

This message was authored by Ryan+H This message was authored by: Ryan+H

Re: Micro filter / Openreach Box - Photo Attached

The cable you've been given by sky is correct, you won't need the micro filter (this is redundant now as you no longer connect landlines to the telephone socket).

This message was authored by TimmyBGood This message was authored by: TimmyBGood

Re: Micro filter / Openreach Box - Photo Attached

Posted by a Superuser, not a Sky employee. Find out more

@Ryan+H wrote:

The cable you've been given by sky is correct,


Yes: I believe it's actually an RJ11 in an adapter to fit a BT jack socket.

* * * * * * *

Sky Glass 55" (on ethernet) & two Stream Pucks (one ethernet / one WiFi)
BT Halo 3+ Ultrafast FTTP (500Mbs), BT Smart Hub 2
This message was authored by Mini+Mo This message was authored by: Mini+Mo

Re: Micro filter / Openreach Box - Photo Attached

@TimmyBGood  You might find they will upgrade the faceplate,had some line work done  here recently  & engineer fitted a new filtered 5c Mk4 Master Socket in place of a old NTE5c MK2 Master Socket same as in @JRoome photo.



This message was authored by Mini+Mo This message was authored by: Mini+Mo

Re: Micro filter / Openreach Box - Photo Attached

@TimmyBGood  It is. Happen to a spare Sky cable which has RJ 11 each end in my desk drawer.

JRoome
Topic Author
This message was authored by JRoome This message was authored by: JRoome

Re: Micro filter / Openreach Box - Photo Attached

Hi Mini+Mo,



Good news! Do you use a micro filter as you have the same socket and no issues?

This message was authored by Mini+Mo This message was authored by: Mini+Mo

Re: Micro filter / Openreach Box - Photo Attached

@JRoomeMy current Master Socket 5c Mk4 front is pre filtered, previous faceplate was a NTE 5a master socket  or NTE5c with MK2 Faceplates think both were pre filtered if my memory is correct.



It's difficult remembering the different faceplates, there been various styles over the years.



https://www.btengineerlondon.co.uk/bt-master-sockets/



https://www.thinkbroadband.com/guides/phone-socket-comparison

This message was authored by jamesn123 This message was authored by: jamesn123

Re: Micro filter / Openreach Box - Photo Attached

Posted by a Superuser, not a Sky employee. Find out more

For future reference for anyone else browsing this thread. If you have Digital voice as part of your package you will not require a microfilter

I am NOT a Sky Employee
Myself & Others offer our time to help others, please be respectful.
