G.Fast, Draytek Vigor 166 and Netgear Orbi
We only have access to FTTC and are due to be upgraded to Ultrafast (G.fast) next week. Are we able to skip using the Sky Hub and instead implement a Vigor 166 in bridged mode (which I understand it should be out of the box) and connect an Orbi mesh system (850 series) via ethernet? I'm guessing I'll need to adjust and input info for various settings but honestly have no knowledge of where to start. Is there anywhere I can source the necessary settings?
As an aside, I've seen conflicting comments, but is there any issue with connecting Sky Q mini boxes in the above setup using Netgear PL1000 powerline adapters?
- Subscribe to RSS Feed
- Mark Topic as New
- Mark Topic as Read
- Float this Topic for Current User
- Bookmark
- Subscribe
- Printer Friendly Page
All Replies
Message posted on 16 Apr 2024 06:59 AM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
@PapaRey there is a guide on Drayrek's site for setting the Vigor 166 in bridge mode. The authentication of the connection is down to the router Sky use a different authentication system than other ISPs which is DHCPv4 Option 61 which requiresca string of user and password in the form
I seem to remember you cannot use the Orbi app to set that up you need use the web interface this article looks correctvfrom a quick scan https://digitalelysium.medium.com/configuring-sky-fibre-broadband-sky-tv-to-work-with-an-orbi-mesh-5...
Q minis wont connect to the Orbi wifi but should using their ethernet connection via a powerline adapter but turn off their wifi which can be accessed via the engineer's menu opened by navigating to settings but entering 001 before select.
65inch Sky Glass, 3 Sky Streaming Pucks, Sky Ultrafast + and Sky SR213(white Wifi Max hub) main Wifi from 3 TP-Link Deco M4 units in access point mode
Message posted on 16 Apr 2024 09:26 AM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
@Chrisee that's great, thank you, and confirms my expectations. I'd read on the Draytek site that the modem is auto set in bridged mode as standard, so hopefully that will be pretty well plug and play.
I've also come across the article you linked to before and wondered if that was indeed the way to go about it, so it's good to have confirmation and a bookmark for it!
Is the powerline likely to have any issues? I've seen several posts about G.Fast not playing nicely with powerline but can't see how or why that should be an issue when connected to the orbi router or satellite.
Message posted on 16 Apr 2024 09:49 AM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
@PapaRey actually you do have a point about powerline and G.Fast. The issue apparently is that some but not all adapters use similar frequencies to carry data as G.Fast uses. Given you can't stop some leakage of the carrier freqencies from the mains they simply knock out the much weaker G.Fast signals the modem is trying to listen to. However don't ask me which adapters are OK and which aren't as I dont know.
65inch Sky Glass, 3 Sky Streaming Pucks, Sky Ultrafast + and Sky SR213(white Wifi Max hub) main Wifi from 3 TP-Link Deco M4 units in access point mode
Message posted on 16 Apr 2024 10:11 AM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
@Chrisee having had a very quick Google, it suggests the Netgear PL1000 operates between 2MHz and 86MHz. The G.fast connection seems to be variable up to either 106 or 212MHz.
So hopefully will be OK....will just have to try and find out I guess.
Message posted on 16 Apr 2024 10:32 AM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
The G.fast signal is from about 18Mhz to 106Mhz in the UK, so almost all homeplugs will interfere with the G.fast signal when near the telephone cabling.
Zen internet on FTTP (900Mbps down, 100Mbps up). SAT> IP (Apple 4K 2nd gen TV to LG C1 OLED UHD TV/Dolby Atmos Denon AVR, DacMagic Plus for Hi-Res audio), hosting own blog/forum (cluster), OPNsense & Zenarmor L4/L7 NGFW & DPI IDS/IPS, Asus ET12 Pro Tri-Band wifi, Linux, Gamer: Xbox Series X/i7 laptop, round-robin DNS over HTTPS, non-proprietary VoIP HD AMR-WB (G.722.2) and more... Beta tester Apple iOS/watchOS/tvOS/iPadOS/macOS.
Message posted on 16 Apr 2024 10:46 AM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
Message posted on 16 Apr 2024 10:51 AM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
Sometimes that will be beneficial to reduce the interference between homeplugs, house electrical wiring and G.fast telephone line.
In my research for VDSL2 and G.fast, VDSL2 needs to be separated by a metre and G.fast by about 3 metres between the signals in these two systems, remembering that the homeplugs signals will flow around the complete electrical house wiring ring.
Zen internet on FTTP (900Mbps down, 100Mbps up). SAT> IP (Apple 4K 2nd gen TV to LG C1 OLED UHD TV/Dolby Atmos Denon AVR, DacMagic Plus for Hi-Res audio), hosting own blog/forum (cluster), OPNsense & Zenarmor L4/L7 NGFW & DPI IDS/IPS, Asus ET12 Pro Tri-Band wifi, Linux, Gamer: Xbox Series X/i7 laptop, round-robin DNS over HTTPS, non-proprietary VoIP HD AMR-WB (G.722.2) and more... Beta tester Apple iOS/watchOS/tvOS/iPadOS/macOS.
Message posted on 16 Apr 2024 11:02 AM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
@mae-3 yes, the separation will be difficult considering the latter point. The incoming internet socket is only about 1m away from the closest electrical socket and there is little I can do about that!
Message posted on 16 Apr 2024 11:09 AM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
Can I see your noise margin on the G.fast router stats currently, if they are high because you are very close to the G.fast cabinet you may still get away with using homeplugs, eg: the noise margin would need to be around 10dB or higher mark.
Zen internet on FTTP (900Mbps down, 100Mbps up). SAT> IP (Apple 4K 2nd gen TV to LG C1 OLED UHD TV/Dolby Atmos Denon AVR, DacMagic Plus for Hi-Res audio), hosting own blog/forum (cluster), OPNsense & Zenarmor L4/L7 NGFW & DPI IDS/IPS, Asus ET12 Pro Tri-Band wifi, Linux, Gamer: Xbox Series X/i7 laptop, round-robin DNS over HTTPS, non-proprietary VoIP HD AMR-WB (G.722.2) and more... Beta tester Apple iOS/watchOS/tvOS/iPadOS/macOS.
Message posted on 16 Apr 2024 12:08 PM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
@mae-3 I don't know if you clocked it in the original post, but the G.fast isn't being installed/activated until next week. Don't know that I can provide any data before then?
Message posted on 16 Apr 2024 12:54 PM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
@mae-3 thanks for the info it has added to my own knowledge.
65inch Sky Glass, 3 Sky Streaming Pucks, Sky Ultrafast + and Sky SR213(white Wifi Max hub) main Wifi from 3 TP-Link Deco M4 units in access point mode
Message posted on 16 Apr 2024 01:25 PM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
The VDSL2 router stats may offer some useful information until G.fast is installed, this will indicate noise on the line of up to about 17Mhz or slightly higher frequency. And would certainly give an indication of distance from the cabinet which would be useful for calculating figures for G.fast noise margins at 160Mbps.
Zen internet on FTTP (900Mbps down, 100Mbps up). SAT> IP (Apple 4K 2nd gen TV to LG C1 OLED UHD TV/Dolby Atmos Denon AVR, DacMagic Plus for Hi-Res audio), hosting own blog/forum (cluster), OPNsense & Zenarmor L4/L7 NGFW & DPI IDS/IPS, Asus ET12 Pro Tri-Band wifi, Linux, Gamer: Xbox Series X/i7 laptop, round-robin DNS over HTTPS, non-proprietary VoIP HD AMR-WB (G.722.2) and more... Beta tester Apple iOS/watchOS/tvOS/iPadOS/macOS.
Message posted on 16 Apr 2024 01:52 PM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi

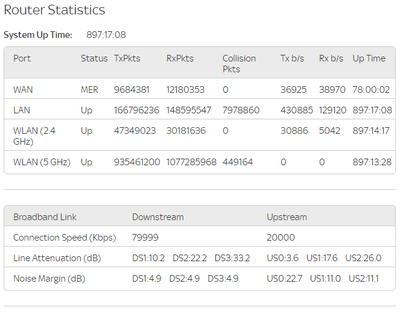

It doesn't look good...
Message posted on 16 Apr 2024 02:02 PM
- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Highlight
- Report post
Re: G.Fast, Draytek Vigor 166 and Netgear Orbi
It is a nice line but the distance is about 250-270 metres from the cabinet suggesting that G.fast could operate at 160Mbps but with low noise margins of about 3-6dB at that 160Mbps speed if it even makes that speed.
I think you'll find homeplugs, especially the ones you have picked and the distance from the telephone line or electrical ring would indicate an issue when using the HomePlug technology concurrently with G.fast.
Zen internet on FTTP (900Mbps down, 100Mbps up). SAT> IP (Apple 4K 2nd gen TV to LG C1 OLED UHD TV/Dolby Atmos Denon AVR, DacMagic Plus for Hi-Res audio), hosting own blog/forum (cluster), OPNsense & Zenarmor L4/L7 NGFW & DPI IDS/IPS, Asus ET12 Pro Tri-Band wifi, Linux, Gamer: Xbox Series X/i7 laptop, round-robin DNS over HTTPS, non-proprietary VoIP HD AMR-WB (G.722.2) and more... Beta tester Apple iOS/watchOS/tvOS/iPadOS/macOS.
