Connect 3rd Party router to Sky Broadband

[JackT97]

Hello,

I currently have Sky Broadband Superfast (with a NTE5C socket) and would like to connect it to a Zyxel NR5101 router.

I have had a look at other users issues trying to connect and seem to be getting very different responses.

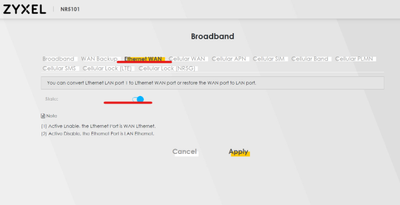

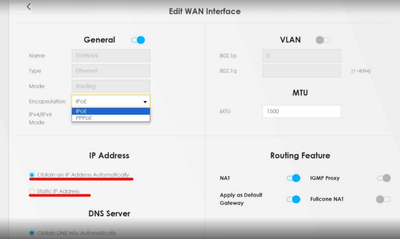

I have enabled the below:

But struggling to understand what info the router needs to connect the broadband

I have seen some forums mention about using option 61 with IAID with the first 8 digits of the MAC address and DUID with "7c4ca5123456" but this does not seem to work

Can anyone tell me what I am doing wrong and if this is the correct way to do it?

[cookiemonsteruk]

@JackT97

That appears to be a 5g router for a mobile data sim

You would need a combined dsl modem router or a dsl modem plus a seperate router

[JackT97]

Thanks for the reply.

So to confirm, I would either need a seperate DSL modem to conect the line, then connect to the router?

Or would I need a completely different router that is cable of connecting ADSL/VDSL/FTTC?

[cookiemonsteruk]

@JackT97

Could you firstly post you hub stats to verify your current connection

https://helpforum.sky.com/t5/Broadband/How-to-find-your-Sky-Broadband-router-stats/m-p/2855717#M1014...

Ideally  a wifi 6 asus rt ax or asus zenwifi model with a seperate modem bridge or , for example the asus dsl ax82u which combines the modem and router in the same box

[cookiemonsteruk]

@JackT97

"Ideally  a wifi 6 asus rt ax or asus zenwifi model with a seperate modem bridge "

Apologies forgot the add the modem bridge to go for price wise would be the tp link td w9970

[JackT97]

Sorry for the late reply.

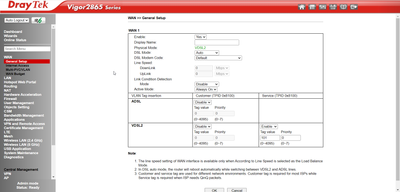

So I've changed my router to a Draytek 2865Lac. The line seems to be sycned but looks like I'm missing authentication details.

Can someone let me know what authentication details I need?

[GD1]

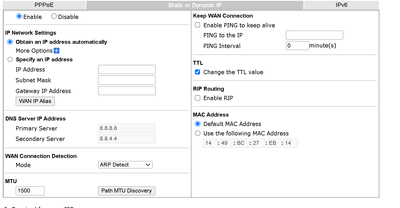

@JackT97 Are you in the UK? as Sky use MER.  In which case you need to be using the tab MPoA / Static or Dynamic IP using the settings below:

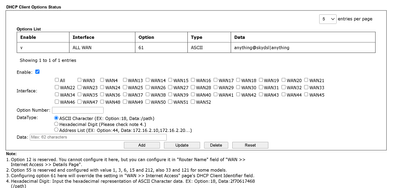

You also need to populate Option 61 within DHCP Client option as per

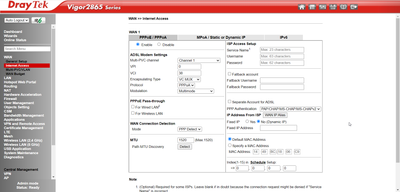

My screen has additional WANS as i have a Draytek Vigor 3910,  but you should see the DHCP client Option button under WAN --> Internet Access.  Make sure you have the correct WAN selected
